SKU: 1218

Dovetail TemplateMaster™

DIY-ers Can Create an Endless Array of Project-specific Dovetail Jigs From Scraps with the DovetailTemplateMaster™.


(3 customer reviews)

$54.99

View Replacement Parts
<< Back
Dovetail TemplateMaster™ - Replacement Parts

Professional caliber single or mixed-pitch dovetail and finger joint jigs, full, spaced and angled of any length made quickly and inexpensively, using a standard router. Make the jigs needed for almost all typical dovetailing applications with the DovetailTemplateMaster™. Eliminate replacement costs created when dovetail jigs are inevitably damaged during normal use.

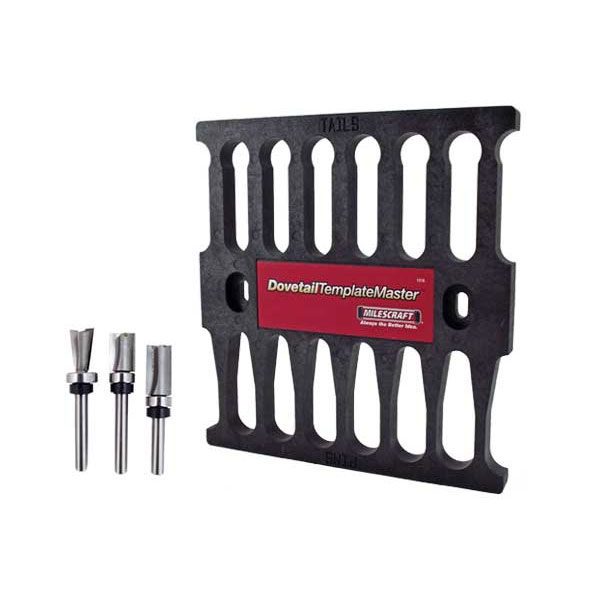

DovetailTemplateMaster™ Body

  • Polycarbonate panel containing pre-cut guide openings

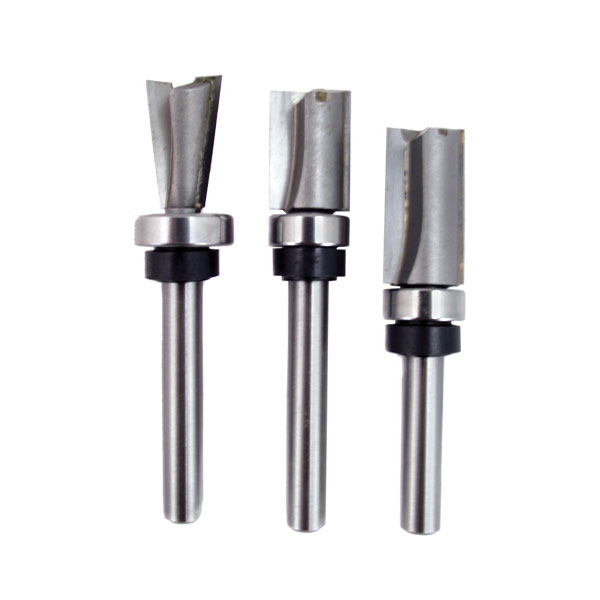

Router Bits

  • Each bit is equipped with a guide bearing, eliminating the need for an auxiliary bushing on the router
  • 1/2″ x 1” straight bit
  • 1/2” x 3/4” straight bit
  • 8° dovetail bit

Step-by-step Instructions

  • Thorough, detailed, instructions, show how to properly align, secure and adjust the DovetailTemplateMaster™
  • Cut both pin and tail openings for full, spaced and angled dovetails of varying sizes
  • Includes complimentary DVD

Specs

  • Includes:

    1/2″ x 1” straight bit, 1/2” x 3/4” straight bit, 8° dovetail bit and DVD

  • Weight:

    1.1 lbs

  • Router Bit Set Screw Requires:

    1.5mm hex key

Reviews

Matthew Bennett
Matthew Bennett
Verified ownerVerified owner
5/5
I became aware of this product through the German magazine Holzwerken - one of the editors, Guido Henn, made a dovetail jig using this template. Just received the system, it looks very solid so far! ...
Show More
5 years ago
Fred Yurk
Fred Yurk
Reviewer
5/5
After acquiring the DovetailTemplateMaster, I built several working hardwood templates, and after a couple of minor fit adjustments, I now have dovetail templates, that are fast, easy to use, and very...
Show More
7 years ago
Anthony Frasco
Anthony Frasco
Reviewer
5/5
I recently got this product and I haven't use it yet but the template is made of a thick, hard, plastic. The three bits that are included are very sharp! The bearings move freely. I can't wait to give...
Show More
7 years ago

3 reviews for Dovetail TemplateMaster™

5.0 Rating
1-3 of 3 reviews
  1. I became aware of this product through the German magazine Holzwerken – one of the editors, Guido Henn, made a dovetail jig using this template. Just received the system, it looks very solid so far! Also watched the DVD materials with Stott, the inventor. Great video but probably could use an update sometime in the future. Thanks Milescraft!

  2. After acquiring the DovetailTemplateMaster, I built several working hardwood templates, and after a couple of minor fit adjustments, I now have dovetail templates, that are fast, easy to use, and very accurate. I can use these over and over for all my dovetail projects. I couldn’t be more pleased with this MilesCraft product.

    Fred
    Northbrook IL

  3. I recently got this product and I haven’t use it yet but the template is made of a thick, hard, plastic. The three bits that are included are very sharp! The bearings move freely. I can’t wait to give this product a try. If it’s like every product Milescraft has, I know it will be great!

    Orlando, Fl
