HingeMate200™

Create Hinge Mortises for all Standard Door Thicknesses


(3 customer reviews)

$23.99

View Replacement Parts
<< Back
HingeMate200™ - Replacement Parts

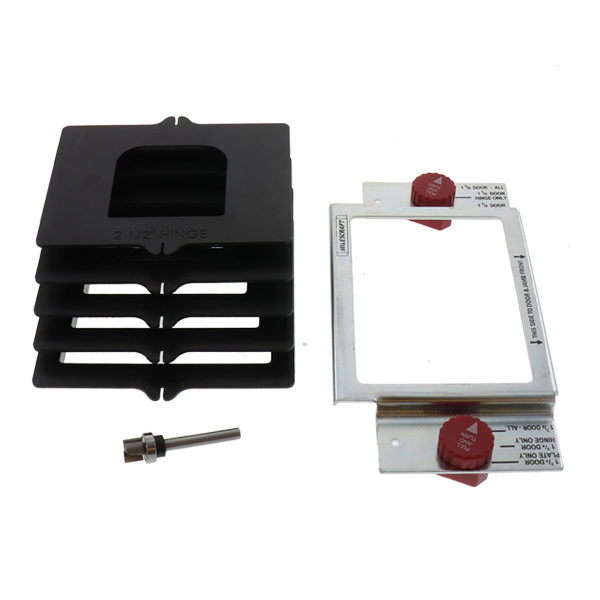

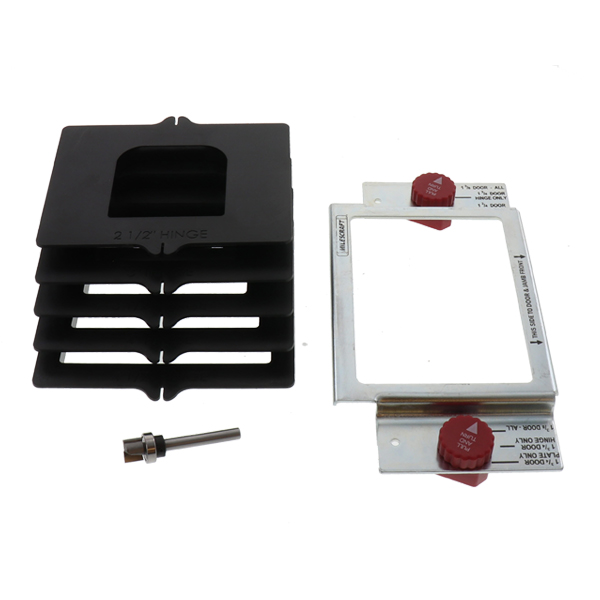

Hang doors with ease with the HingeMate200™. This kit is great for installing new doors or replacing/repairing existing doors. The HingeMate300™ comes with the tools and templates required to route hinge mortises on doors and jambs.

Steel Template Frame

  • Durable steel frame with adjustable cams allow for 1-3/4” and 1-3/8” door settings
  • Can be mounted on both the door and jamb

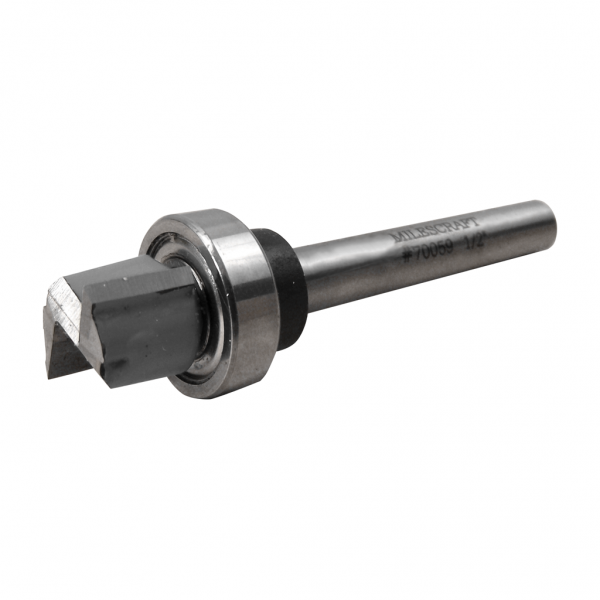

1/2” Router Bit Included

  • Tip made of durable tungsten carbide
  • Router bit with ball bearing eliminates the need for a bushing

Templates

  • Contains templates needed to rout hinge mortises
  • Five sizes included (2-1/2”, 3”, 3-1/2”, 4”, and 4-1/2”)
  • Rotate template to achieve 5/8” radius or 1/4″ radius

Specs

  • Template Frame Material:

    Steel

  • Template Material:

    ABS Plastic

  • Includes:

    1/2″ Router Bit

  • Router Bit Set Screw, Hex Size:

    1.5mm

  • Hinge Template Sizes:

    2-1/2”, 3”, 3-1/2”, 4”, 4-1/2”

  • Screw Size:

    #6 Phillip Pan Head Screw

Reviews

Robert A Pociask
Robert A Pociask
Reviewer
5/5

Important to note that door trim in an existing doorway must be removed for the kit to work properly.

2 years ago
Frank R
Frank R
Verified ownerVerified owner
5/5

Does exactly as it is intended as a template.

2 years ago
Doug Desgrange
Doug Desgrange
Reviewer
3/5
Just bought and unpacked from our local Menards. The directions drawings show the steel template screen printing for "THIS SIDE TO DOOR & JAMB DOOR" on opposite side compared to physical steel par...
Show More
6 years ago

3 reviews for HingeMate200™

  1. Doug Desgrange

    Just bought and unpacked from our local Menards. The directions drawings show the steel template screen printing for “THIS SIDE TO DOOR & JAMB DOOR” on opposite side compared to physical steel part! Any help appreciated!

    Response from Milescraft: The stamping issue on the steel template is being resolved on our end and will be corrected immediately. The instruction manual is correctly labeled. All you will need to do is follow the directions in the manual and you will get results. We apologize for any confusion that this has caused!

  2. Frank R Verified Owner

    Does exactly as it is intended as a template.

  3. Robert A Pociask

    Important to note that door trim in an existing doorway must be removed for the kit to work properly.

Add a review

Your email address will not be published. Required fields are marked *

FAQs

What should I do if the stop on the jamb prevents the template frame from going over it?

If the stop on the door jamb exceeds the height of the template frame, you will want to create a shim or spacer to accommodate the additional height that you will need. Please be sure that the router bit will still properly ride along the inside of the hinge template after your spacer is in place.
