Delivery Rate Max:
750 Gallons / 3,000 liters per hour
1/2ˮ (13 mm) / 3/4ˮ (19 mm)
3/4ˮ (19 mm)
Hose Diameter 1/2″ (13 mm):
Pump lift 24 m
Hose diameter 3/4″ (19 mm):
Pump lift 18 m
12 ft. (4 m)
Dry Running Max.:
Drill Output Min.:
Rotation Speed Max.:
Glass Filled Nylon
Do not convey poisonous, corrosive, or flammable substances such as petrol, kerosene, nitro compounds, explosive materials, or drinking water.
No, this product contains grease and therefore is not food safe.

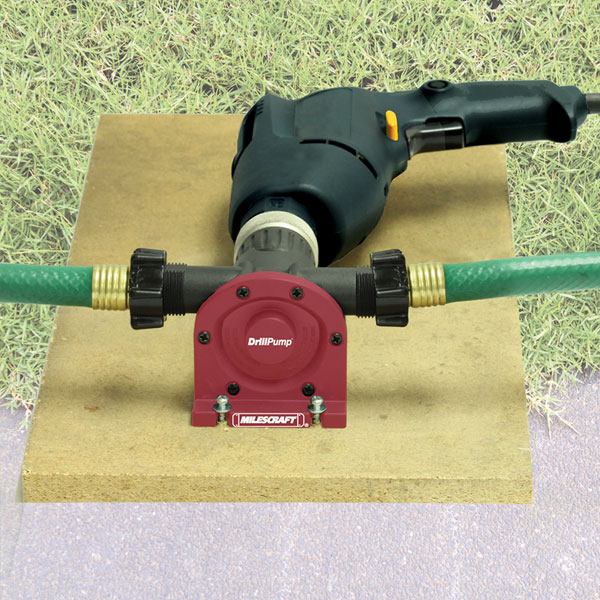

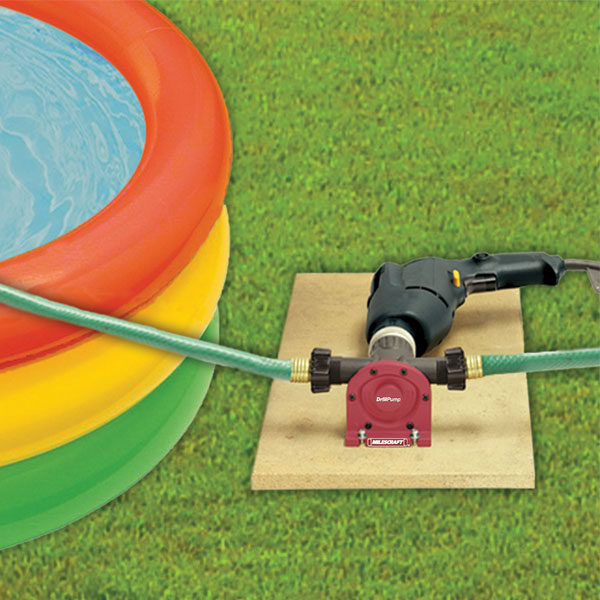

Yes, the DrillPump must be mounted for operation.
After every use apply a small amount of silicone grease. To apply, remove the black housing screws and cover, and put a bit of grease on the housing where the rubber fan blades touch, then reassemble.
Any spray lubricants, such as WD-40, are not recommended, as they do not provide sufficient lubrication for this product and can cause damage to the internals of the pump.
The drill should be set to run forward, turning the pump in a clockwise direction.
The arrows on the drill are for the flow direction.
Never run the DrillPump in reverse.
Do not convey hot liquids above 104°F (40°C)
No, the DrillPump will not operate with siphon flow, the drill needs to be on.
