SKU: 1342

EuroHingeJig™

Concealed Hinge Jig Makes Cabinet Door Installation Easy


(5 customer reviews)

$24.99

View Replacement Parts
<< Back
EuroHingeJig™ - Replacement Parts

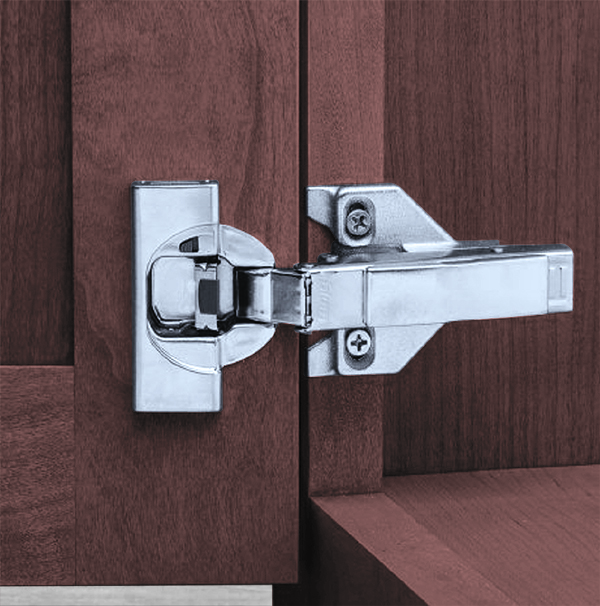

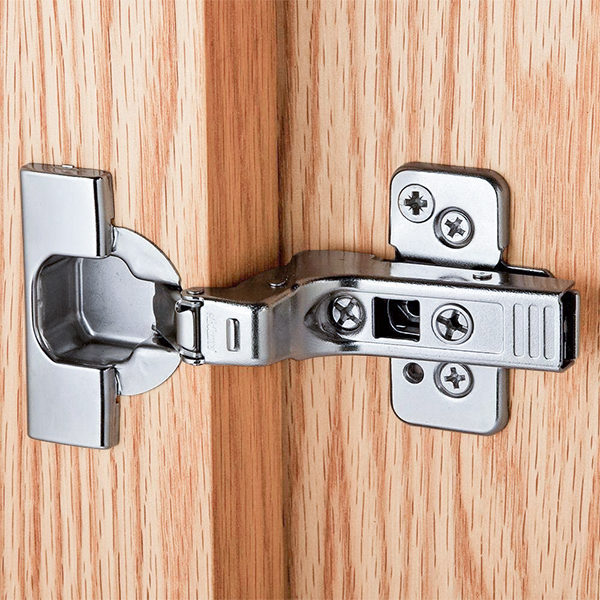

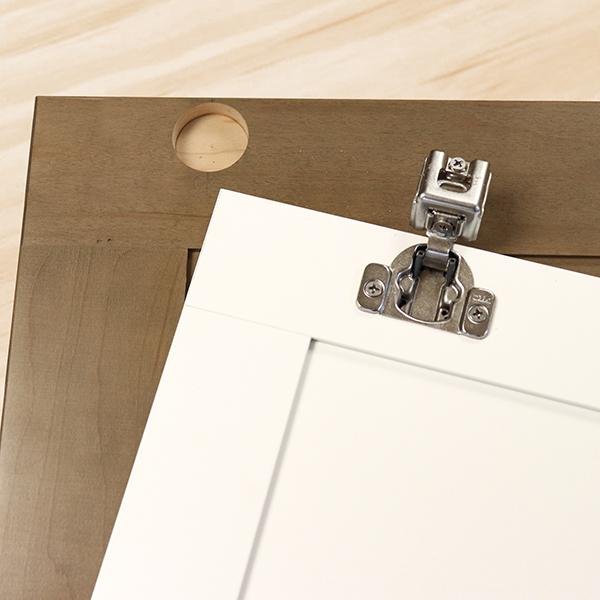

The Milescraft® EuroHingeJig™ takes the guesswork out of installing European style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.

EuroHingeJig™ Features

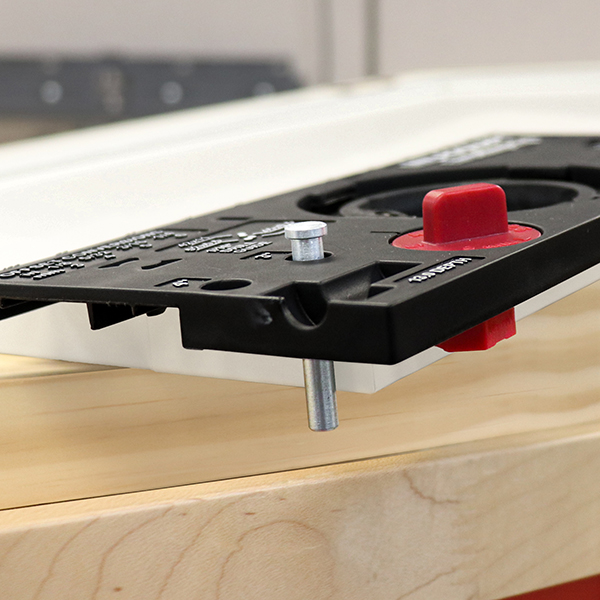

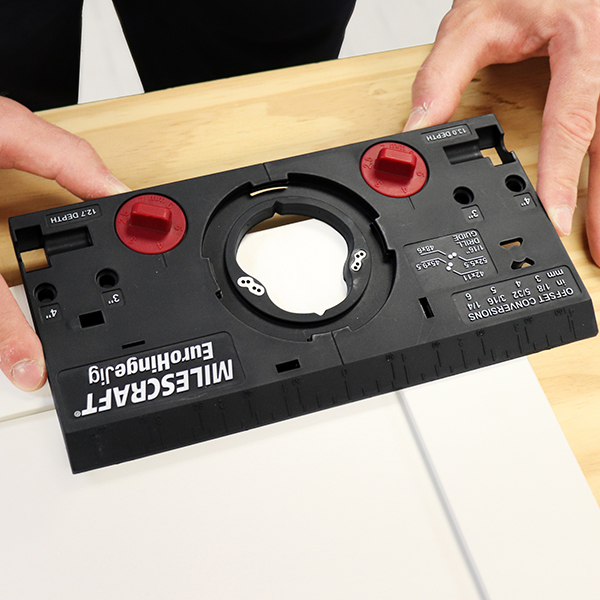

  • Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom
  • The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
  • Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
  • Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures

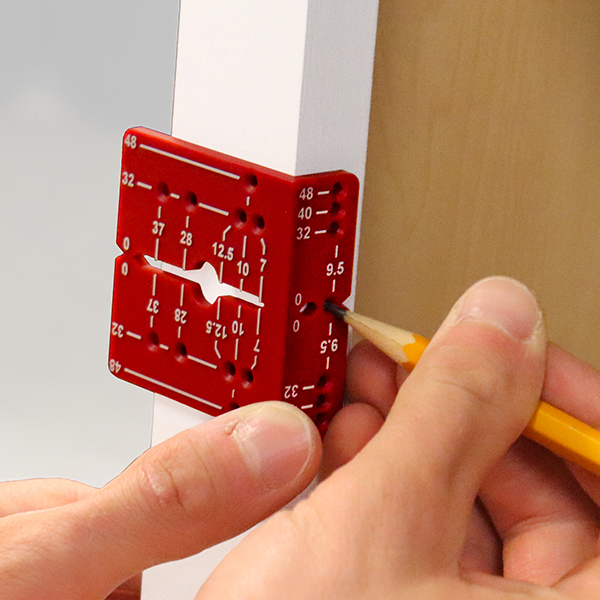

  • The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame

Specs

  • Edge Offsets:

    2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm

  • Locator Pin Offsets:

    3”, 4”

  • Drill Bit:

    35mm EuroHinge Boring Bit

  • Shank:

    3/8″ Round

  • Depth Stop:

    3/8″ Split

  • Depth Settings:

    12.7mm, 13mm

  • Includes:

    Hinge Marking Guide, 1/16” Pilot bit , 3mm Allen Wrench
