PocketJig400™

Professional Pocket Hole Kit

Read Reviews

$89.99

View Replacement Parts

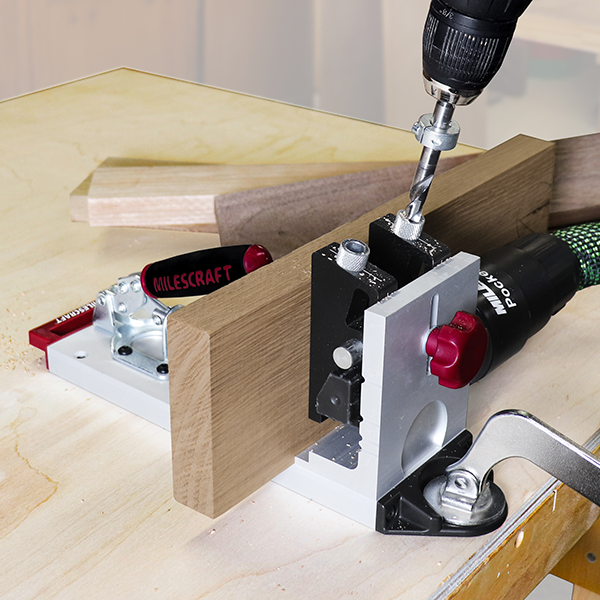

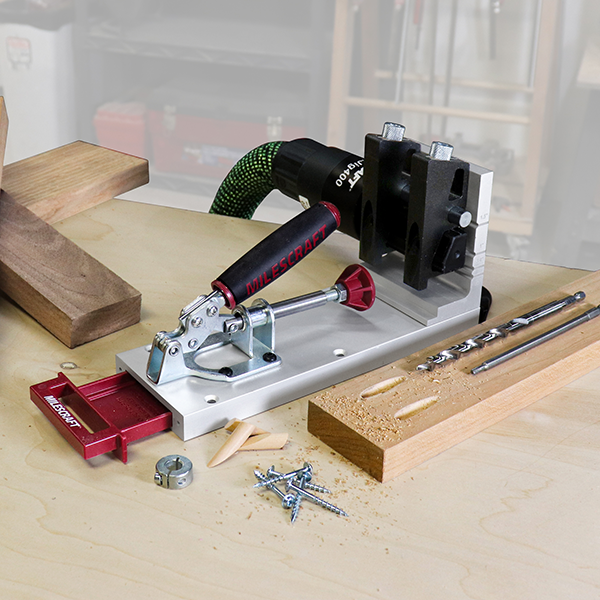

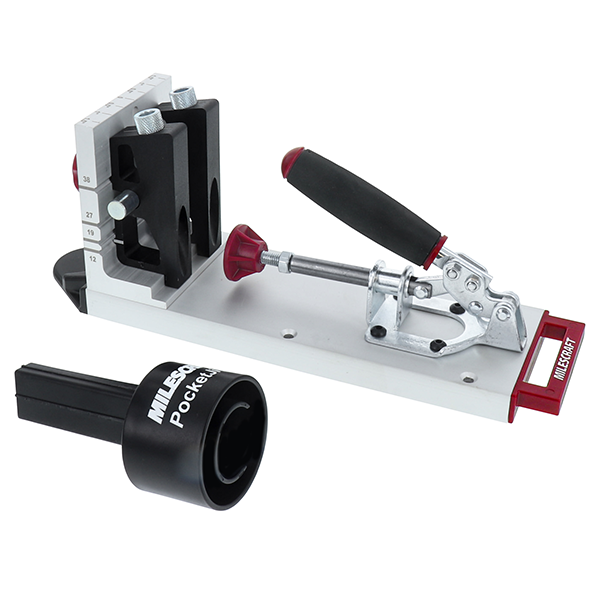

Creating professional quality pocket hole results has never been easier with the Milescraft PocketJig400™.

Solid aluminum construction ensures accurate pocket holes and a long product life. The hardened steel bushings, dust extraction, and sleek design will make this your go-to for pocket hole joints going forward.

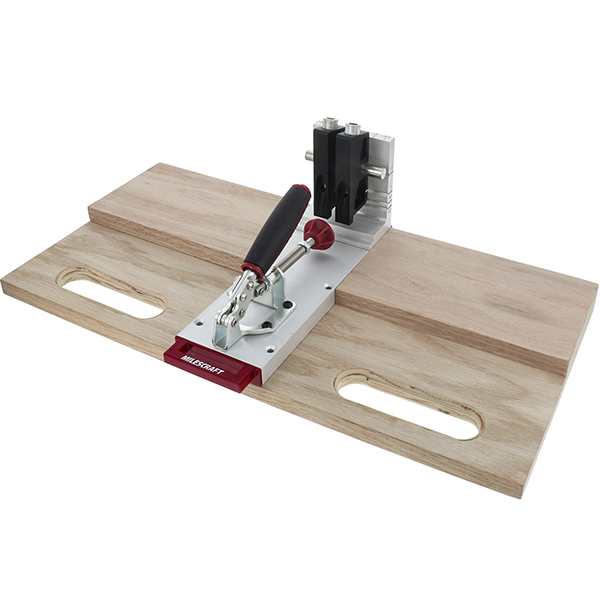

A convenient storage drawer contains markings for all common board thicknesses to make setting the depth stop simple and easy. For mobile or repair jobs, the clamping wall of the PocketJig400™ is removable, turning it into a hand-held jig that fits and clamps almost anywhere.

All-Metal Construction

Increased rigidity reduces the flex for more precise results

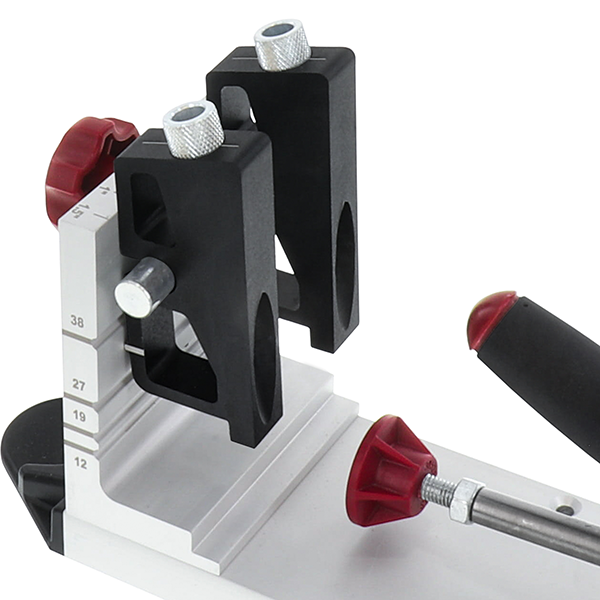

Durable Drill Guides

Height and width adjustable bushing blocks contain two, 3/8″ steel drill guides that can be positioned for drilling boards from 1/2” up to 1-1/2” thick and holes from ¾” to 3” apart

Dial In The Pressure

Steel toggle clamp with micro-adjust clamp-head dials in perfect clamping pressure for different board thicknesses

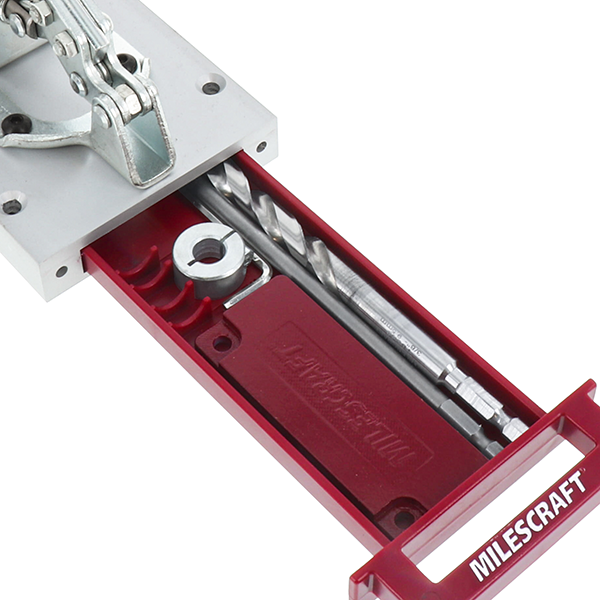

Store Your Stuff

Convenient storage drawer holds bits, drivers, depth stops, and more and contains markings for all common board thicknesses to make setting the depth stop simple and easy

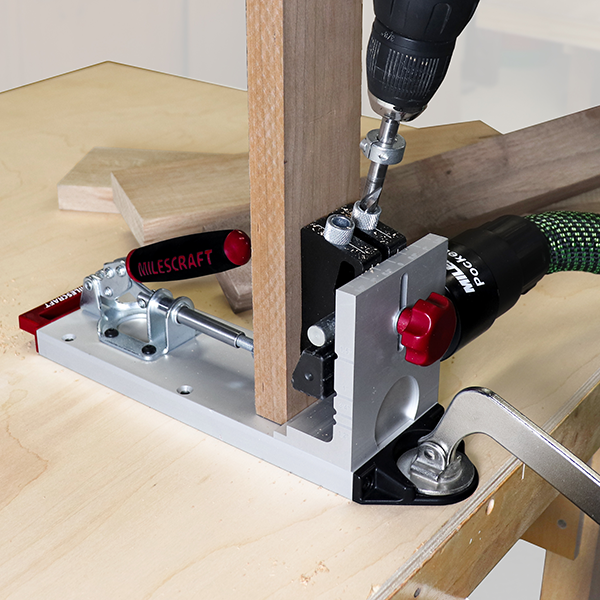

Portable Pocket Hole

L-Base can be removed from main body and used for mobile pocket hole projects and repairs

Accessories Included

Kit comes complete with 3/8” Pocket Hole Bit, T20 Magnetic Driver, 3/8” Split-Ring Depth Stop, 60 Pocket Hole Screws, 10 Pocket Plugs, and 3mm Hex Key.

Specs

Main Body Material:

Aluminum
Drill Guide Material:

Hardened Steel
Drill Guide Sizing:

3/8”
Board Size Range:

1/2” to 1-1/2”1-1/4″ T20 Self-Tapping PH Screws Fine x 10
1-1/2″ T20 Self-Tapping PH Screws Coarse x 10
1″ T20 Self-Tapping PH Screws Coarse x 10
Included::

Main Jig Body with Toggle Clamp, Removeable L-shaped Clamping Wall, 2x Solid Steel Drill Guides, 3/8” Pocket Hole Bit, 6” T20 Magnetic Driver, 3/8” Split-Ring Depth Stop, 10x 1” Coarse Pocket Screws, 10x 1.25” Coarse Pocket Screws, 10x 1.25” Fine Pocket Screws, 10x 1.5” Coarse Pocket Screws, 10x 2” Coarse Pocket Screws, 10x 2.5” Coarse Pocket Screws, 10x 3/8” Pocket Plugs, and 3mm Hex Key.
Bushing Spacing:

3/4″ to 3″

Reviews

No reviews to show

FAQs

What can be done to prolong the life of my pocket bit?

Always be sure your drill is set to the highest speed and lowest torque and the drill bit is in the bushing before powering up the drill and contacting any wood surfaces.

What can be done to prolong the life of my pocket bit?

Always be sure your drill is set to the highest speed and lowest torque and the drill bit is in the bushing before powering up the drill and contacting any wood surfaces.
