SawGuide™

SKU: 1403

SawGuide™

Sawguide™ Turns Hand-Held Circular And Jig Saws Into Precision Cutting Tools


(11 customer reviews)

$14.99

View Replacement Parts
<< Back
SawGuide™ - Replacement Parts

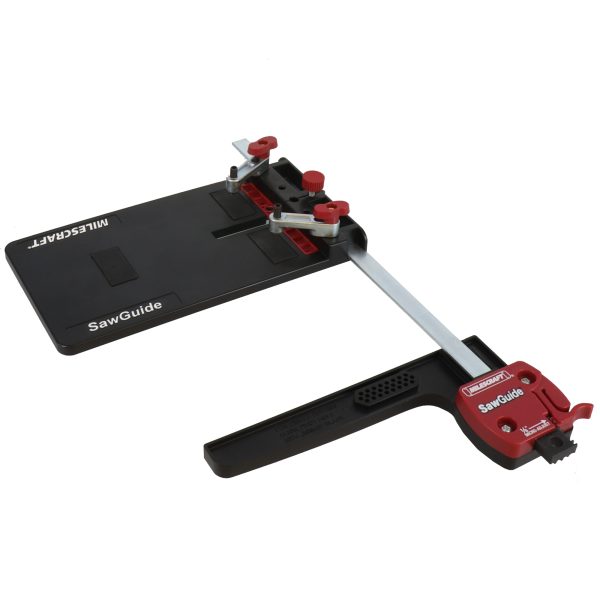

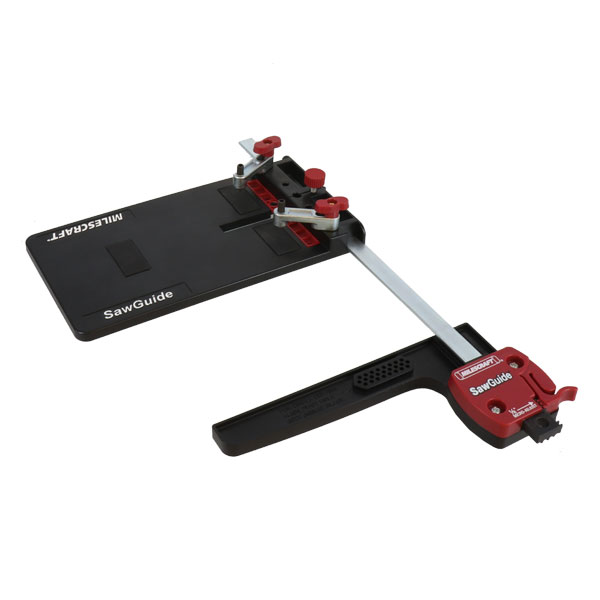

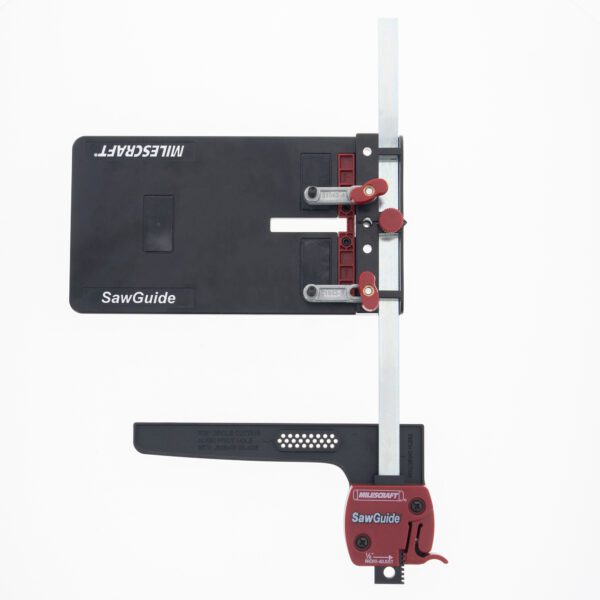

The new and improved Milescraft SawGuide™ turns hand-held circular and jigsaws into precision cutting tools. Using the SawGuide™, you can make long, difficult edge cuts without the use of a table saw. Speed through these tough cuts, at home or in the field, and make sure they come out right every time.

Users can quickly set up their saw to make straight, angle, bevel, and rip cuts. When flipped over, the SawGuide becomes a circle cutting guide for your jigsaw and can make circles from 6” to 24” in diameter. The SawGuide’s universal non-slip base holds your saw firm ensuring straight final cuts and works with almost any circular saw or jigsaw.  Whether right-handed or left, the versatile and reversible edge guide can be configured on both sides of the SawGuide™ to ensure comfortable and safe operation.  The long edge guides your saw all the way through the cut ensuring clean entry and exit cuts.

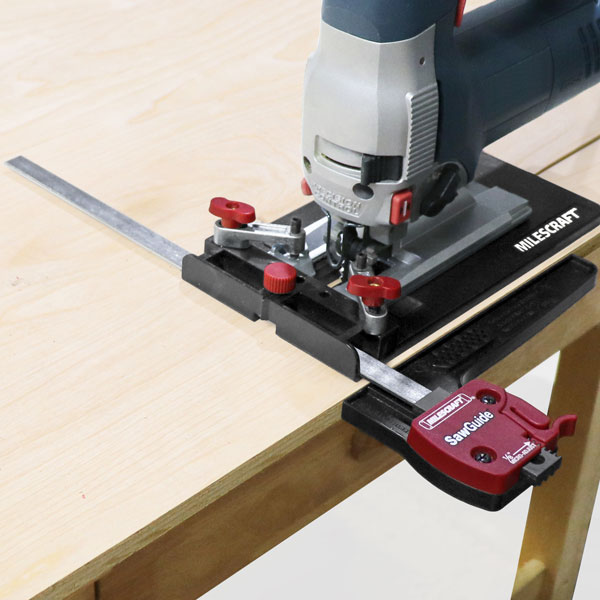

Edge Cutting – With Circular Saws & Jig Saws

  • Extends cutting range from 1″ to 11.5″ from the edge of workpiece with jigsaws

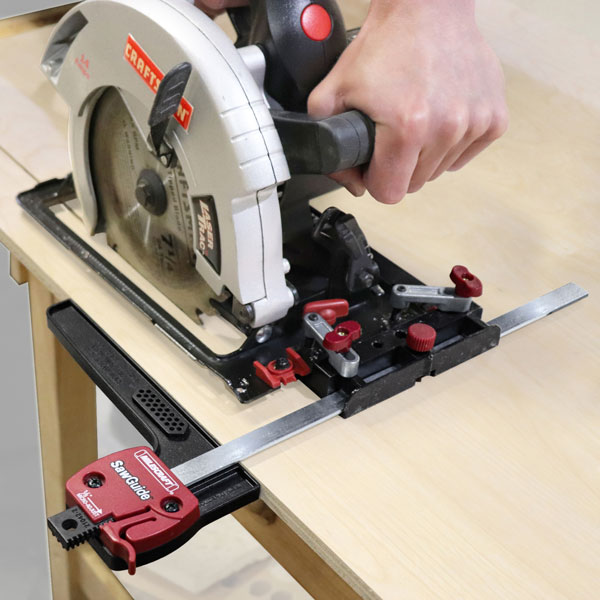

  • Extends cutting range from 1″ to 14″ from the edge of workpiece with circular saws

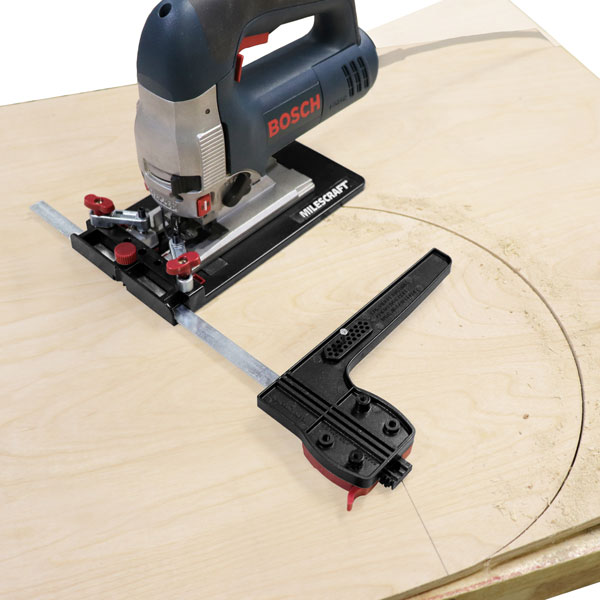

Circular Cutting – With Jig Saws

  • Cuts circles from 6″ to 24″ in diameter

Universal Saw Base with Non-Slip Pads

  • Provides maximum stability and hold to keep your saw in place during use
  • Accepts jigsaws & circular saws with left or right-sided blades

Reversible Edge Guide

  • Long edge guide for accurate cuts all the way through your stock
  • Guide works equally as well from the left or right-hand side

Guide Bar

  • 16″ (410mm) long, 1/8″ (3mm) thick

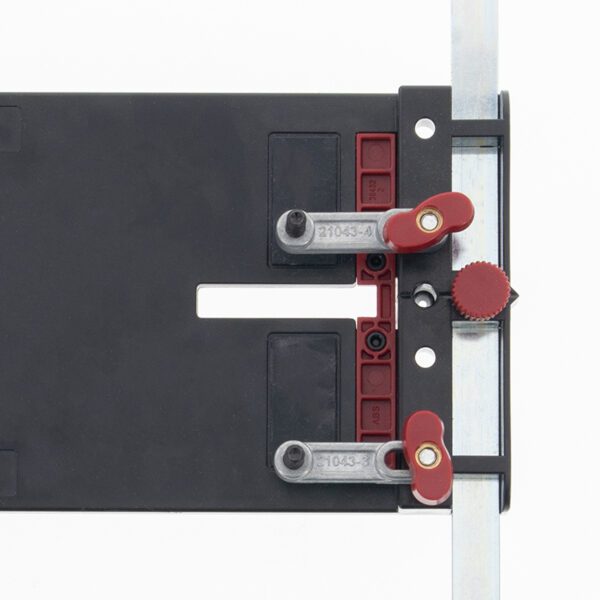

Mounting Clamps

  • Metal clamps secure saws to the saw base

Removable Bevel Foot

  • For saws that don’t have a flat base

Pivot Holes

  • Pivot holes for cutting a circle with a jigsaw

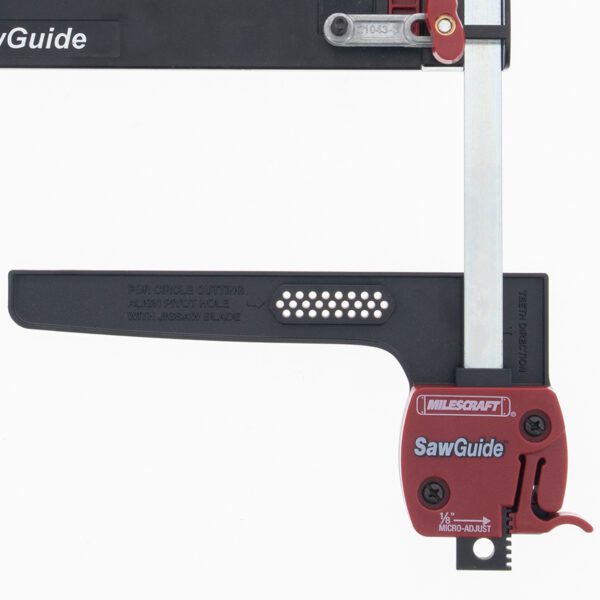

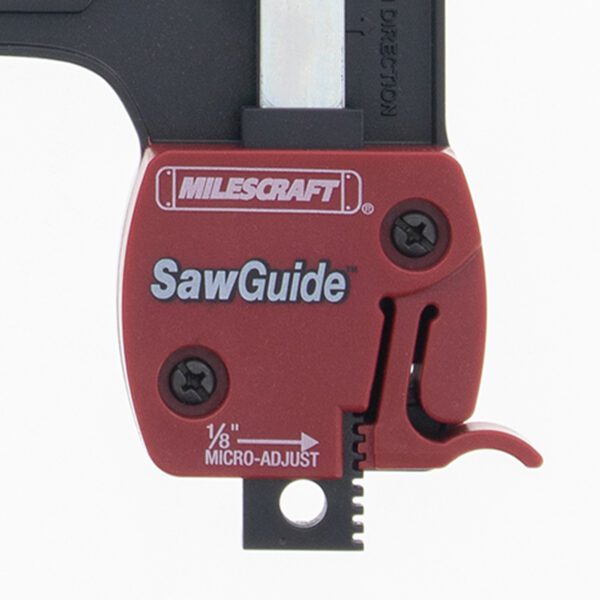

Thumb Lever Micro-Adjustment

  • Exclusive trimming feature allows you to adjust the length of cut by 1/8″ increments without tools

Specs

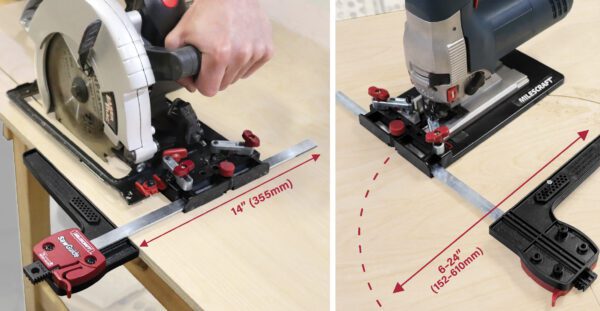

  • Circle Cutting:

    Cuts circles from 6″ to 24″ (610mm) in diameter (w/jig saw)

  • Edge Cutting (Jigsaw):

    1″ (25mm) to 11.5″ (292mm)

  • Edge Cutting (Circular Saw):

    1″ (25mm) to 14″ (355mm)

  • Guide Bar Length:

    16″ (410mm)

Reviews

William
William
Verified ownerVerified owner
5/5

Arrived on time; nice tool to have for accurate jigsaw cuts

1 year ago
Alberto Spada
Alberto Spada
Verified ownerVerified owner
5/5

The versatility between circular saw and jigsaw is excellent

2 years ago
Terry Birdno
Terry Birdno
Reviewer
5/5

Picked one of these up at Home Depot and was skeptical about whether it would work or not. It worked perfectly. I needed rip ⅛" off of a 1 x 2½ board. Works like a dream.

2 years ago
Eric D.
Eric D.
Verified ownerVerified owner
5/5

Super happy with the product!

2 years ago
Robert C.
Robert C.
Verified ownerVerified owner
5/5

Only used once, but much less cumbersome than what I was using previously.

2 years ago
Frank R
Frank R
Verified ownerVerified owner
5/5

Certainly, helps cut accurately.

2 years ago
Alfie
Alfie
Verified ownerVerified owner
5/5

Excellent tool and I love the fact that one can also use this on a jig saw. Its the most versatile saw guide I have ever used. Thanks Milescraft.

2 years ago
Li
Li
Reviewer
5/5

looks promising. when will it be available on Amazon?

2 years ago
Claudie Archer
Claudie Archer
Verified ownerVerified owner
5/5

Haven’t had a chance to use it yet but it seems well made and quite useful. Thanks

2 years ago
Gilles Chauret
Gilles Chauret
Verified ownerVerified owner
4/5

Easy to use,quick and do a good job!

3 years ago
Anonymous
Anonymous
Verified ownerVerified owner
4/5

Handy gadget

3 years ago

FAQs

Is the SawGuide Compatible with the Dremel Saw-Max?

Yes, the SawGuide is compatible with the Dremel Saw-Max.



I am using the SawGuide to cut circles, why is the cut getting smaller?

If the cut of your circle gets smaller, then you have your nail set too far forward.



I am using the SawGuide to cut circles, why is the cut getting larger?

If the cut of your circle gets larger, then you have your nail set too far backward.



What is the best blade to use in my jigsaw for circular cuts?

Choosing the best curve cutting jigsaw blade is essential for completing your tasks with the best results. It is important to get the appropriate tools for the material that you are using.

Here a few tips and tricks for cutting circles with jigsaws.

  1. Choose a blade that is appropriate for the material that you are working with
  2. Blades with a higher TPI (teeth per inch) will provide a smoother cut
  3. Narrow blades are preferred for curved/circular cuts
  4. For softwoods, softer hardwoods (poplar, mahogany, alder, etc.), and sheet goods, run your jigsaw at its highest speed for most cuts. If you encounter resistance, back off the speed slightly.
