TrackLock™

Universal T-Track Clamp Accessory


(1 customer review)

$9.99

The TrackLock is an innovative, adaptable, T-Track table clamping solution that converts your existing bench clamps for use on T-Tracks of different sizes. The TrackLock is compatible with any brand or size of bench clamp that mounts with a 5/16” – 18 fastener. Included are four different sizes of T-Bolt fasteners to quickly convert any bench clamp from ¼” T-tracks to 13mm, 23mm, 30mm, or 35mm tracks. This makes it compatible with virtually every workshop track system on the market.

T-Bolts Included:

  • ¼” – 20 (7/16” x 5/8”)
  • M8 x1.25 (13mm x 20mm)
  • M8 x1.25 (23mm x 30mm)
  • M8 x1.25 (30mm x 35mm)

Heavy-Duty Clamping Base

  • The solid, heavy-duty base helps spread clamping pressure evenly across your tabletop, reducing track tear-out

Non-Marring Clamping Solution

  • The non-marring base shoe prevents scratching and damage to your work table surface

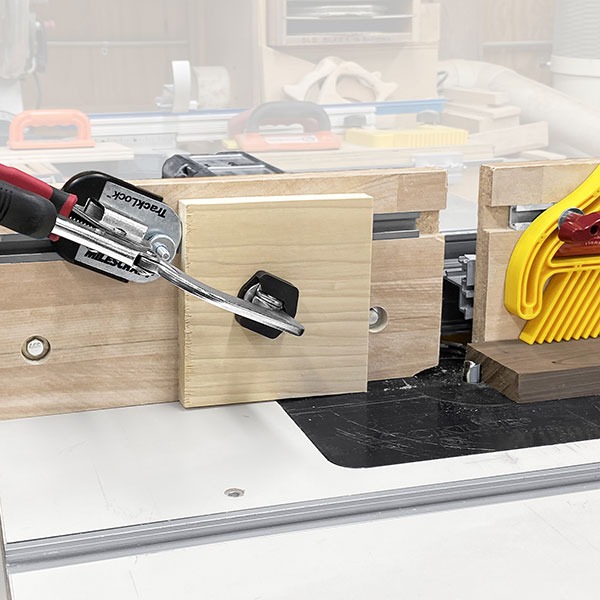

Ideal Applications:

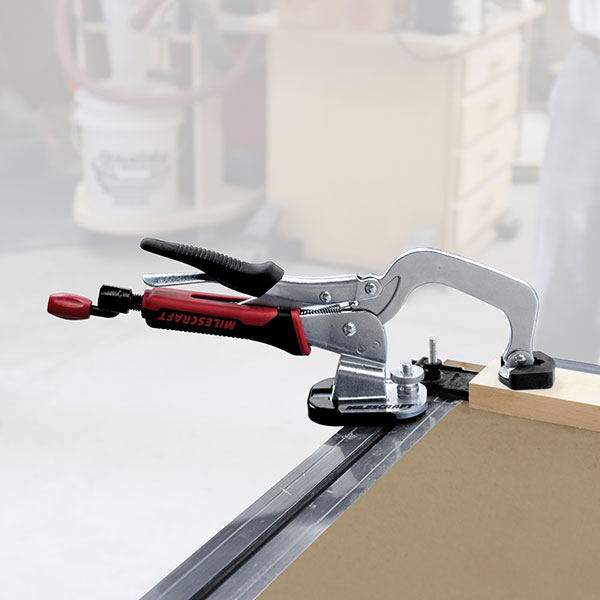

  • Workbench

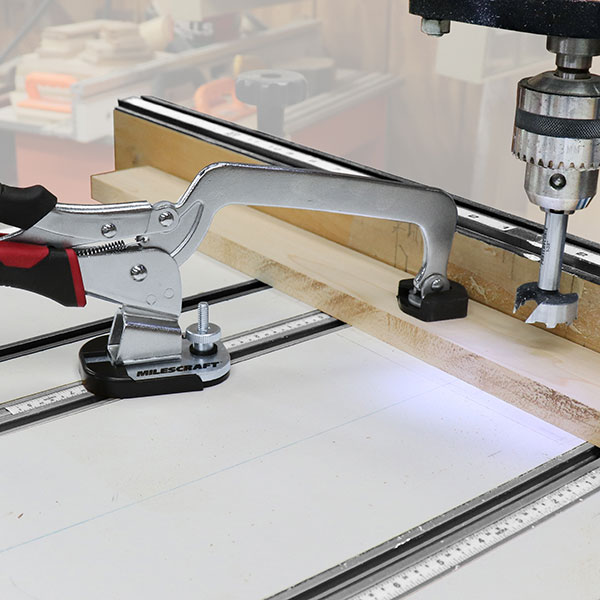

  • Drill Press
  • Router Tables

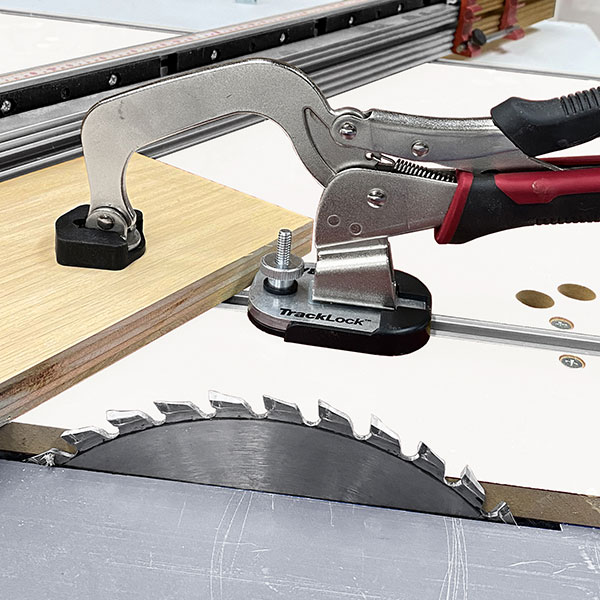

  • Table Saw

Warning: Do not use excessive force when clamping

Specs

  • Includes:

    1/4″ – 20 (7/16″ x 5/8″
    M8 x 1.25 (13mm x 20mm)
    M8 x 1.25 (23mm x 30mm)
    M8 x 1.25 (30mm x 35mm)
    Clamp Base Plate
    Base Plate Shoe
    1/4″ – 20 Knob
    M8 x 1.25 Knob
    Mounting Hardware

Reviews

Bill Grimes
Bill Grimes
Verified ownerVerified owner
5/5
Removes the need to keep taking the clamp off the t-track to fiddle with the 5/16 screw being used to hold the clamp down. Here the 5/16 connection is fully tightened and separate from the t-track ada...
Show More
2 years ago

1 review for TrackLock™

  1. Bill Grimes Verified Owner

    Removes the need to keep taking the clamp off the t-track to fiddle with the 5/16 screw being used to hold the clamp down. Here the 5/16 connection is fully tightened and separate from the t-track adapter (whose tension is adjustable with a thumbscrew on top of the base). I make my own EurekaZone t-track adapter with available extrusion and a 5/16 stud and thumbscrew. Using a long extrusion distributes the tension and reduces damage to the t-track from tight clamping.
