DIY Round Side Table Plans
The Accent Piece
Dimensioning

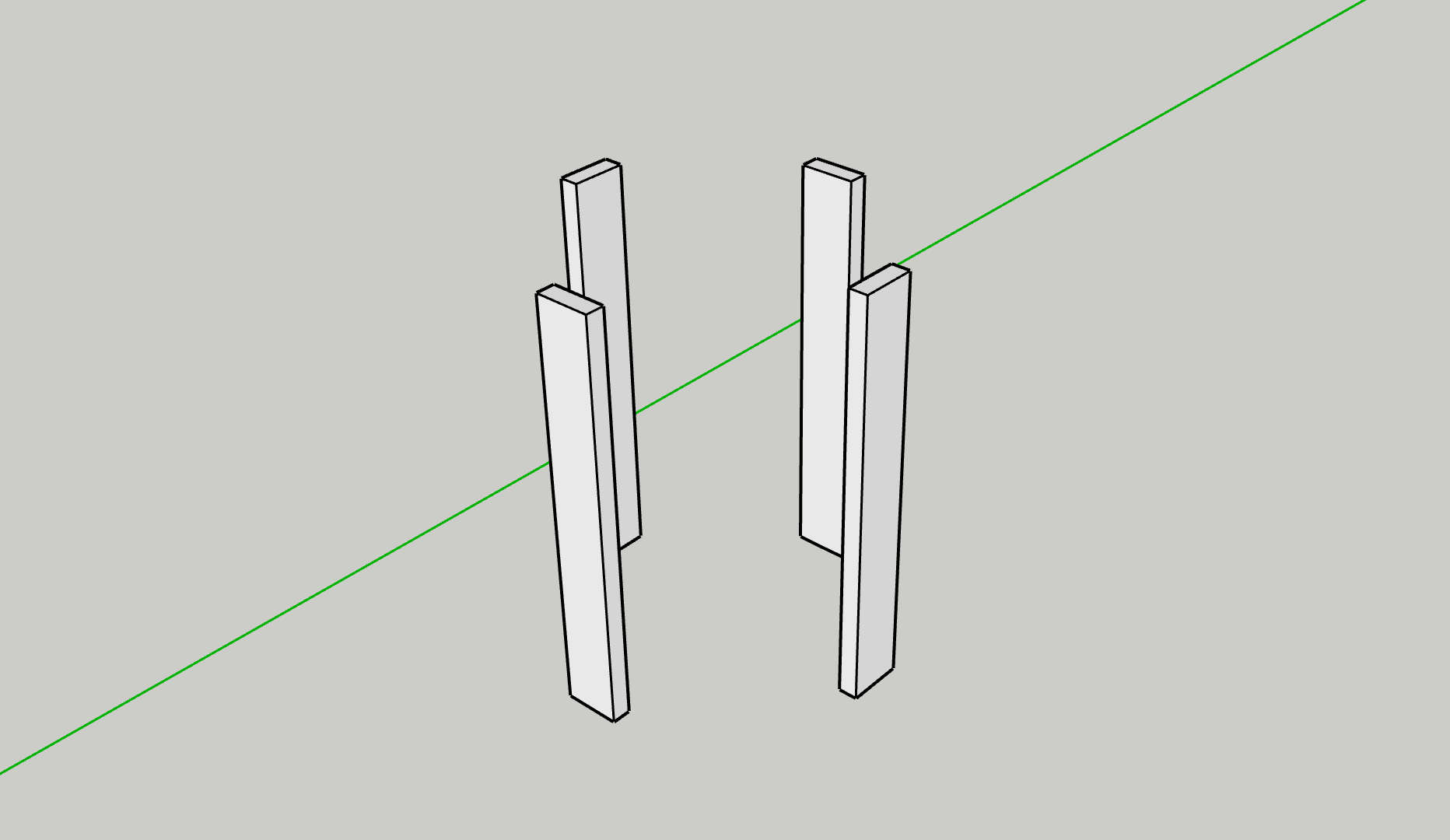

Dimension all of your boards according to the cut list.
Making the Center Rod
Create the “metal” rod using the wooden dowels (parts F). Find details on how to do this in this post about how to make wood look like black metal.

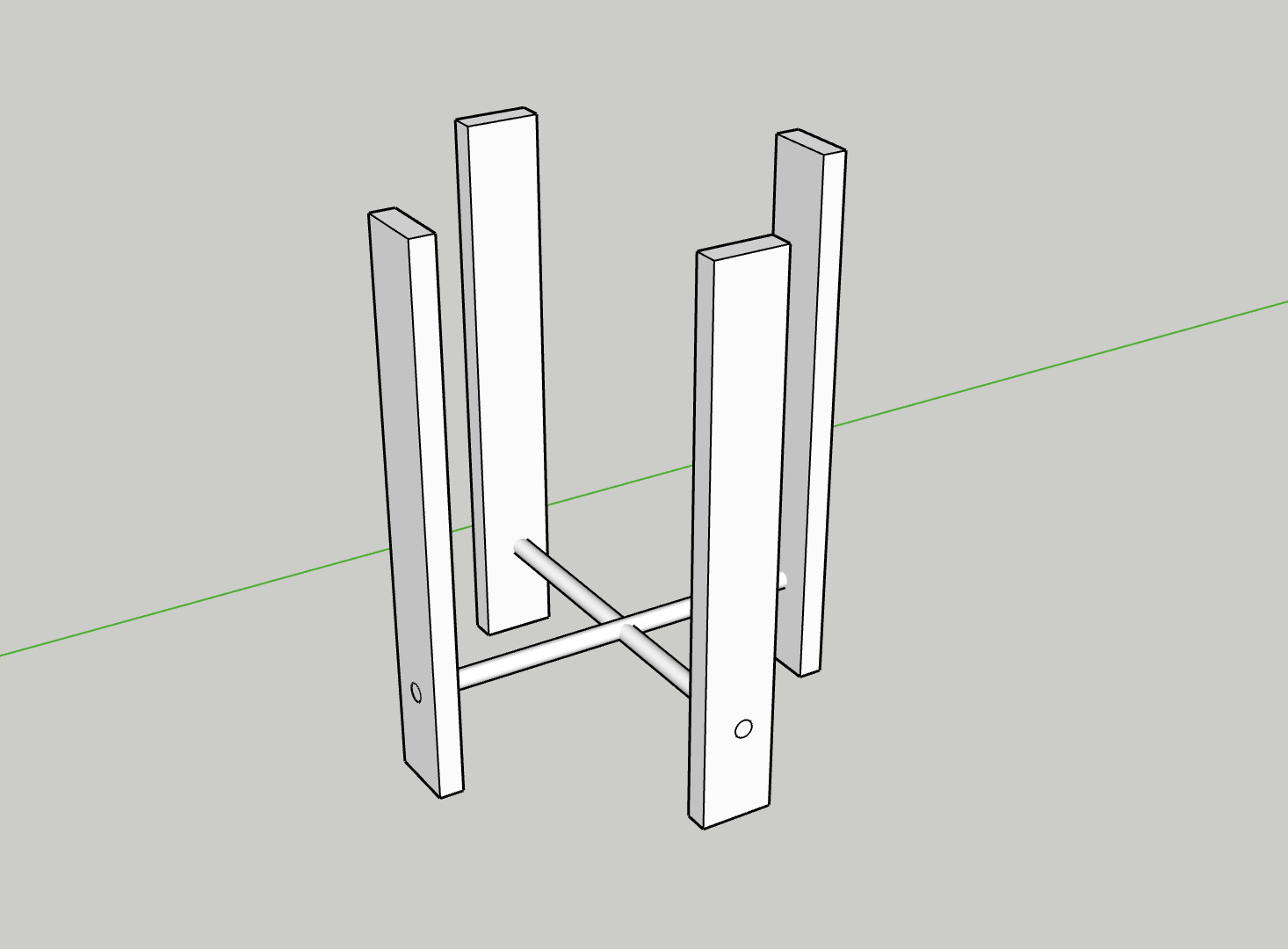

Drill ½” holes in the legs (parts A) 4” from the bottom and insert the dowels (parts F) in the holes. Use wood glue to reinforce.
Joining the Legs

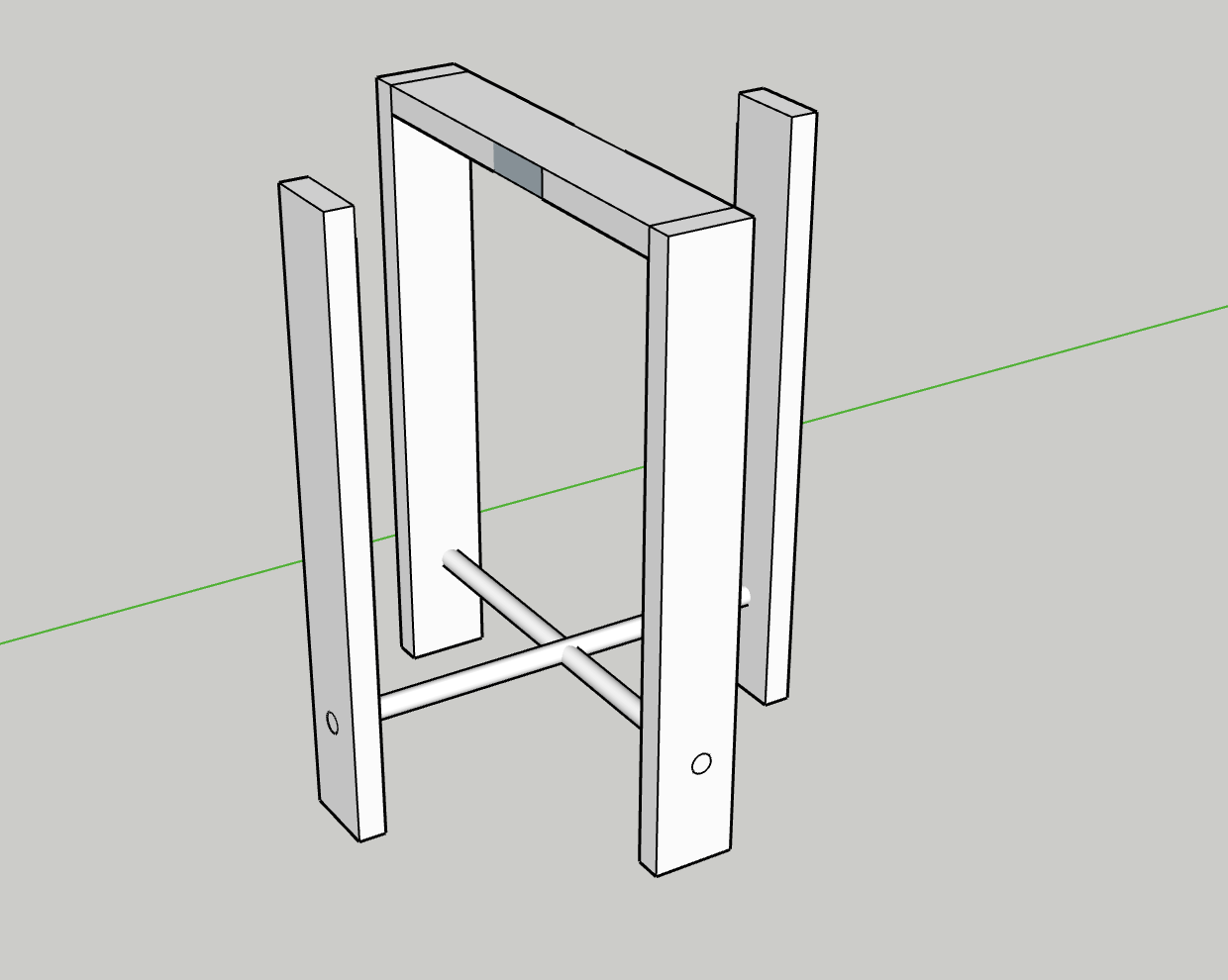

Using wood glue and pocket holes, attach the top stretcher (part B) to the legs.
Attaching the Parts

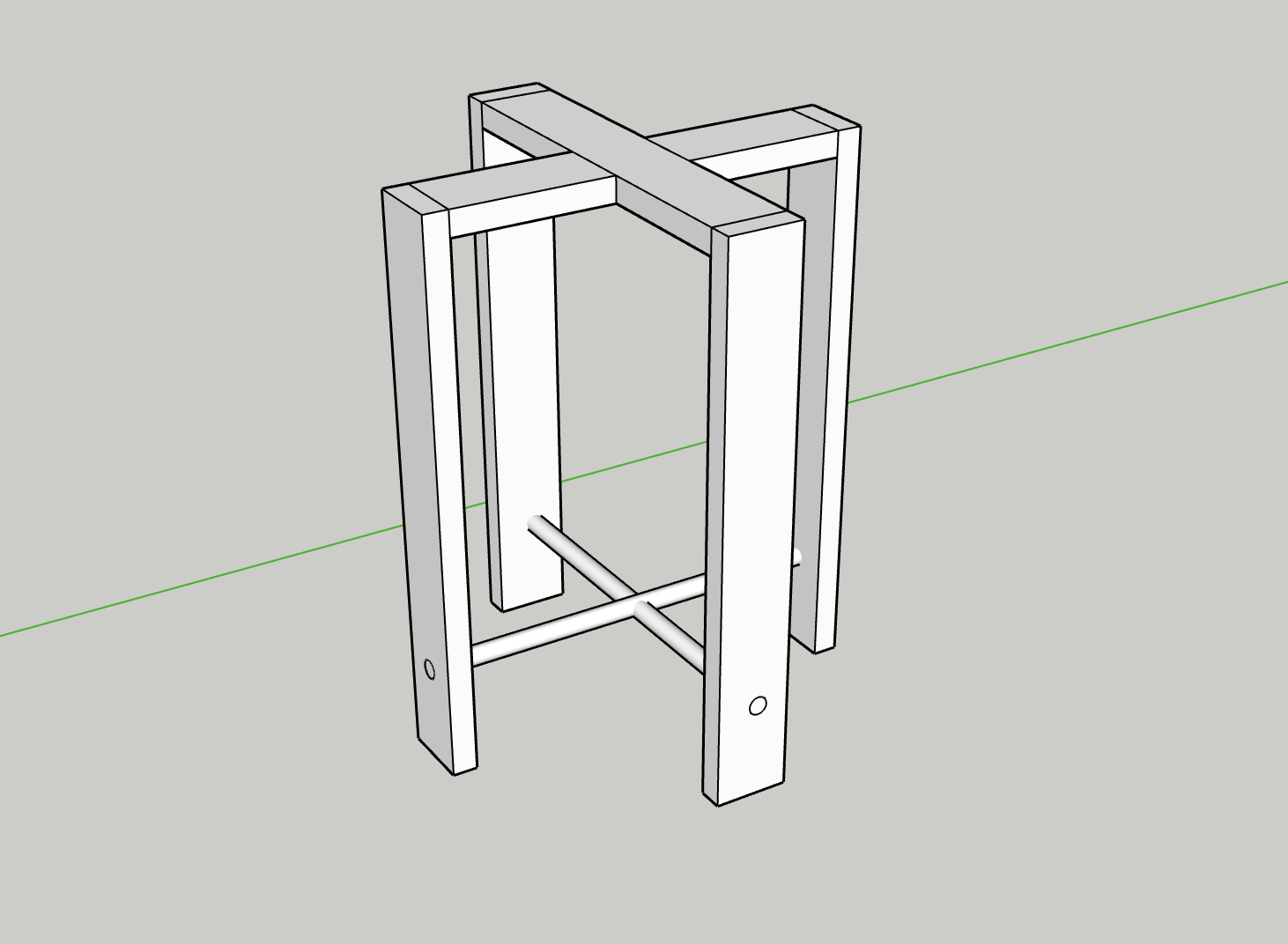

Using wood glue and pocket holes, attach the small stretchers (part C) to the longer stretcher (part B) and to the remaining legs (parts A).
Rounding it Off
Glue parts D to each other. Optional: reinforce with pocket holes.
Using the CircleGuideKit from Milescraft, use your router to cut the circle out of the wood (parts D) for the tabletop.
Finishing up
Attach the round tabletop to the base from the bottom using wood screws. Congratulations on a job well done!
MENTIONED TOOLS
Milescraft CircleGuideKit
Table saw
Miter Saw
Power Drill
(tools continued)
Pocket Hole System
Planer
Orbital Sander
Router
Combination Square
Drill Press
Clamps
CUT LIST
Part / Count / Cut List:
A / 4 / 1.5” thick x 3″ wide x 22.5” long
B / 1 / 1.5” thick x 3″ wide x 16” long
C / 2 / 1.5” thick x 3″ wide x 6.5” long
D / 4 / 1.5” thick x 5.5″ wide x 22” long
E / 1 / ½” diameter wooden dowel, 19” long
F / 2 / ½” diameter wooden dowel, 9.25” long
