HingeJig™

Self-Clamping Door Hinge and Latch Jig

$27.99

View Replacement Parts
<< Back
HingeJig™ - Replacement Parts

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig™. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig™ in place while routing without the use of screws or nails that can leave holes in a finished door.

Self-Clamping

  • Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails

Fits All Doors

  • Adjustable settings allow door hinge jig to be used on all standard size 1-3/8” and 1-3/4” thick doors

Works with Multiple Hinge Sizes

  • Routs hinge mortises for 2-1/2” to 4-1/2” hinges

Rout Different Radiuses

  • Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)

Unique Design

  • Design of the HingeJig™ eliminates need for multiple inserts to rout different hinge corner radiuses

Create Latch Plate Mortises

  • Kit includes templates to rout common door latch mortises sized 1” x 2-1/4” , 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”

Built in Depth Setting

  • Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

Self-Guided Router Bit

  • Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises

Built-in Storage

  • Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval

For Doors Only

  • Not for use when routing door hinges on jamb / frame

Specs

  • Compatible Door Thickness:

    1-3/8” and 1-3/4” Doors

  • Latch Sizes:

    1” x 2-1/4”, 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”

  • Door Hinge Sizes:

    2-1/2”, 3” , 3-1/2”, 4”, and 4-1/2″

  • Hinge Corner Radius Sizes:

    ¼”, 5/8”, or Square (Chisel Required)

  • Door Mounting:

    Padded Self-Clamping. No Hardware Required

  • Adjustable Backset Plugs:

    Adjust for Door Hinge Routing, 1-3/8” Latch, and 1-3/4” Latch

  • Storage:

    Built-in for router bit and available self-centering hinge bit (not included)

  • Guided Router Bit:

    12mm Cutting Head with ½” Ball Bearing

  • Includes::

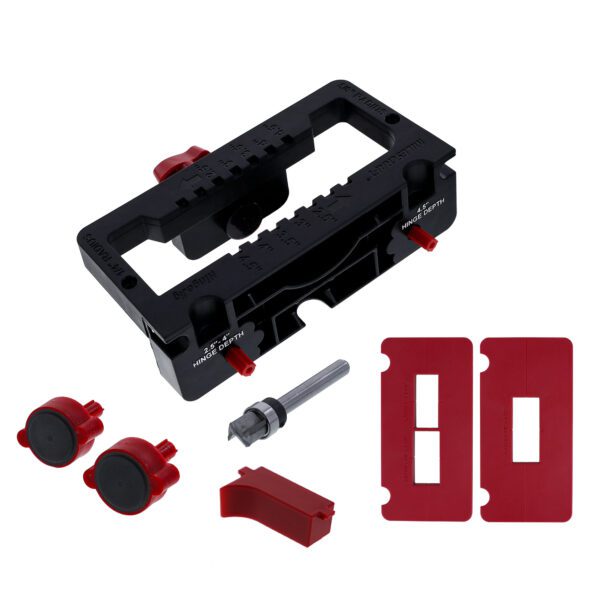

    Jig Main Body, Built-in Clamp, Adjustable Hinge Spacer, 12mm Router bit with Bearing, 2x Adjustable Backset Plugs, 2x Latch Templates
