HingeJigPLUS™

Self-Clamping Door and Frame Hinge, Latch, and Strike Plate Jig

Rated 4.00 out of 5 based on 1 customer rating
(1 customer review)

Read Reviews

$39.99

View Replacement Parts

The HingeJigPLUS™, by Milescraft, is a one-stop solution for door installation work. The jig routs and installs door and jamb / frame hinges, latches, and strike plate mortises quickly and accurately. The included bonus PinDoctor™ even assists in removing your old door. The dual-clamping design of the HingeJigPLUS™ mounts quickly and holds firm to ensure cuts are clean and accurate. No need for screws or nails which can damage your door. Built for North American style hardware.

Self-Clamping

Padded, dual self-clamping design sets up quickly and prevents damage to doors caused by mounting screws or nails

Fits All Doors

Adjustable settings allow jig to be used on all standard size 1-3/8” and 1-3/4” thick doors

Works with Multiple Hinge Sizes

Rout door hinge mortises for 2-1/2” to 4-1/2” hinges

Compatible with Frame / Jamb

Reconfigure HingeJigPLUS™ to rout hinges and strike plates on frame / jamb

Rout Different Radiuses

Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)

Drop in Latch Templates

Includes additional templates to rout common door latch mortises sized 1” x 2-1/4” , 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”

Drop in Strike Plate Templates

Rout 1-1/2” x 2-1/4” and 1-1/8” x 2-3/4” strike plates

Bonus PinDoctor™

Included hinge pin removal tool helps remove existing doors

Built in Depth Setting

Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

Self-Guided Router Bit

Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises

Built-in Storage

Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval

Specs

Guided Router Bit:

12mm Cutting Head with ½” Ball Bearing
Compatible Door Thickness:

1-3/8” and 1-3/4” Doors
Door Hinge Sizes:

2-1/2”, 3” , 3-1/2” , 4”, and 4-1/2”
Door Latch Sizes:

1” x 2-1/4”, 1-1/8” x 2-1/4”, and 1-1/8” x 2-3/4”
Strike Plate Sizes:

1-1/2” x 2-1/4” and 1-1/8” x 2-3/4”
Hinge Corner Radius Sizes:

¼”, 5/8”, or Square (Chisel Required)
Door Mounting:

Padded Dual Self-Clamping. No Hardware Required
Adjustable Backset Plugs:

Adjust for Door Hinge Routing, 1-3/8” Latch, and 1-3/4” Latch
Storage:

Built-in for router bit and available self-centering hinge bit (not included)
Includes:

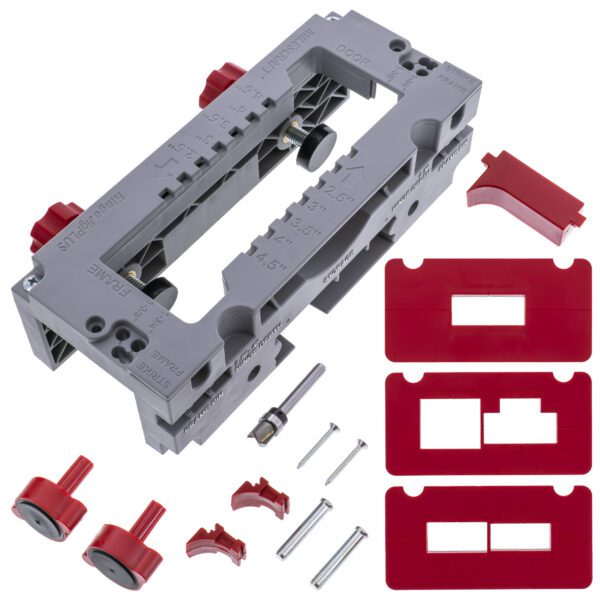

Jig Main Body, 2x Built-in Clamps, Bonus PinDoctor™, Adjustable Hinge Spacer, 12mm Router bit with Bearing, 2x Corner Radius Inserts, 2x Adjustable Backset Plugs, 2x Frame/Jamb Indexing Pins, 2x Latch Templates, Strike Plate Template
